How to Configure the Media Field: Attachment and Field Formats

This tutorial focuses on how file uploads actually work in JetFormBuilder Media Field and what the difference is between the Attachment field values of storing the media files. We will explain how Media Field settings affect:

• backend preview;
• frontend output;
• emails, CPT, CCT, user meta.

Additionally, we will find answers and solutions for the common confusion, such as not showing an image, only a link is visible, or no image preview on the backend.

Table of Contents:

• How WordPress Handles Files Added via Form
• Media Field Attachment Value Formats
  • Attachment ID
  • Attachment URL
  • Array with attachment ID and URL
  • Array of attachment IDs
  • Storing images for CCT items
• File Stored Not in Attachment
• Guests’ Uploads
• FAQ

Here is the preview comparison table:

How WordPress Handles Files Added via Form

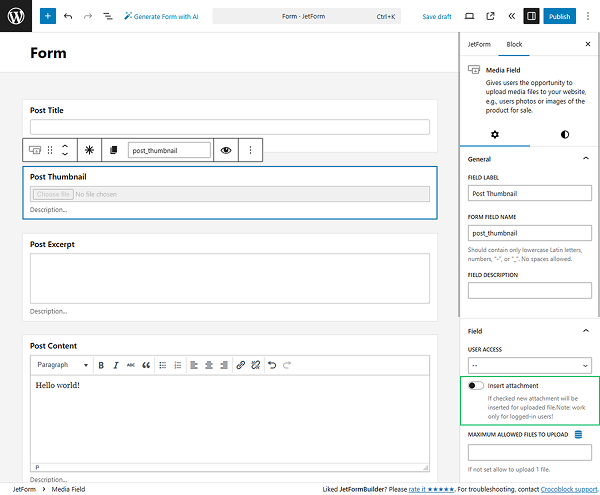

When setting up the Media Field, you can decide whether the inserted file will be in the Attachment.

What does it practically mean:

• When the Insert Attachment toggle is off, the media file or its URL can be saved in the Form Records or in the meta field in case you insert/update a post/CCT item/user.
• When the Insert Attachment toggle is on, the media files are saved in a separate “Attachment” folder and displayed in the Media Library.

The way you store the file defines how it behaves later.

Media Field Attachment Value Formats

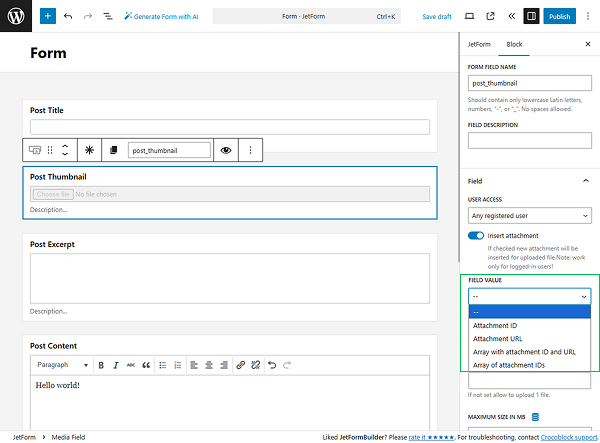

Refer to our Media Field article to get a full field overview. Here, we want to focus on the FIELD VALUES available:

• Attachment ID — allows for storing the ID of the file;
• Attachment URL — allows for storing the URL of the file;
• Array with attachment ID and URL — allows for storing both: ID and URL of the file;
• Array of attachment IDs — allows for storing the list of files’ IDs.

According to the configuration of the Insert Attachment and the FIELD VALUE settings, the JetFormBuilder Media Field offers flexibility in file storage formats. Further, we have a glance at different possible scenarios and explain what they affect.

Attachment ID

When media files are stored with the “Attachment ID” option selected, the file is saved following the next steps:

• the file’s ID is stored in the created/updated post’s meta field;
• a new Attachment post is created for this image;
• the image displayed in the Media Library.

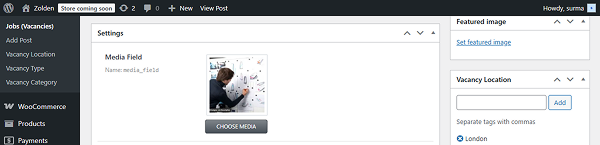

These two posts are connected now because the file’s ID is saved in the wp_postmeta. And as far as the Attachment post saves the size of the image, it can be rendered properly, and we see the image preview on the backend of the created/updated post.

Attachment URL

When the “Attachment URL” value is applied to the Media Field and the form is aimed to insert/update a post/CCT item/user, here is what happens to the image once the form is submitted:

• the URL of the media file is saved in the created/updated post’s meta field;
• a new Attachment post is created for this image;
• the image displayed in the Media Library.

These two posts are not connected.

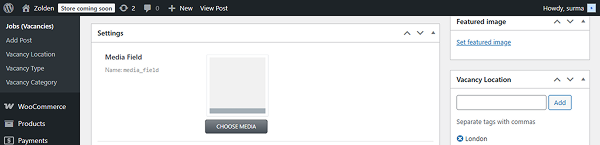

On the backend of the created/updated post, there will be no preview of the image. You will see a gray square. It is okay for this setup — the media file is saved.

It happens because WordPress does not distinguish the type of file uploaded by its’ URL (it can be PNG, PDF, doc, or an audio file) — that is why there is no preview of the file.

Array with attachment ID and URL

The same logic applies here. When you use the “Array with attachment ID and URL” option:

• IDs and URL of media files are saved in the created/updated post’s meta field;
• new Attachment posts are created for these images;
• images are displayed in the Media Library.

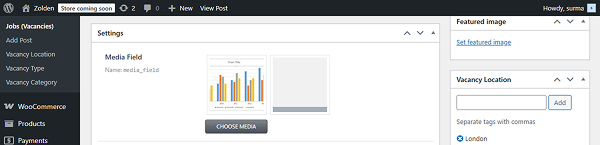

The preview on the backend of the created/updated post also depends on the way you used to store the media files:

• files stored as IDs will have the preview;
• files stored as URLs will have no preview.

Array of attachment IDs

Consequently, when you store the media files as the “Array of attachment IDs,” they will:

• have media files’ IDs saved in the created/updated post’s meta field;
• new Attachment posts are created for these images;
• images displayed in the Media Library;
• attachment posts will be connected to the created/updated CPT post;
• images will be previewed on the backend of the created/updated post.

Storing images for CCT items

The same logic is applied to the media files from CCT. The only difference is that the CCT stores everything in one database table, while CPT is stored in the wp_post table, and its’ metadata with IDs and URLs is stored in the wp_postmeta table.

File Stored Not in Attachment

Let’s consider the case where the media file is stored as a URL and is not saved in the Attachment. Technically, here is what happens:

• media file saved in plugin folder (Forms Records);
• the media file is not stored in the Media Library;
• In the database, the file is stored as a URL.

There will be no preview on the backend of the created/updated post. On the frontend, the image can be displayed if the component uses a URL. This is how it works with the most popular solutions:

Storing files as URLs without adding them to the Media Library can be useful in the following cases:

• when you need simple uploads;
• when you need to upload not only media files (PDF, docs);
• when you are not intending to save the files to the Media Library.

The key point of such a setup is that WordPress treats the uploaded object as a file, not an image.

Guests’ Uploads

Handling file uploads from non-logged-in users is a common scenario in forms like applications, contact forms, or profile submissions. The JetFormBuilder Media Field works the same way for guests as it does for registered users — but there are a few important details that affect how files are stored and used later.

There is no limitation on file uploads for guests — the same logic applies as for logged-in users. However, since the user is not authenticated, WordPress does not associate the upload with a specific user account. This makes your field configuration even more important.

The key difference in guest uploads is not whether the file uploads, but how it is stored and referenced.

If the file is stored as URL:

• the file is treated as a simple link;
• there is no connection to the WordPress Media Library;
• no preview, no metadata, no resizing for the image.

If the file is stored as Attachment:

• a full WordPress attachment post is created;
• the file appears in Media Library;
• WordPress generates image sizes and metadata;
• preview on the backend of the CPT post.

This distinction becomes critical when you later:

• display images on the frontend;
• use them in emails;
• assign them to user profiles or posts.

It is important to emphasize that for guest uploads, there is no user ownership:

• files are not linked to a user account;
• you cannot rely on “uploaded by user” logic;
• you must explicitly define where the file is stored (post, CCT, meta field, etc.)

FAQ

That’s it. Now you know how the settings of the Attachment FIELD VALUES in JetFormBuilder Media Field affect the backend preview, frontend output, and the media file usability.
